Download Catalogue4500lb (2045 kg) Synthetic Rope 12V (ดูรายละเอียด)

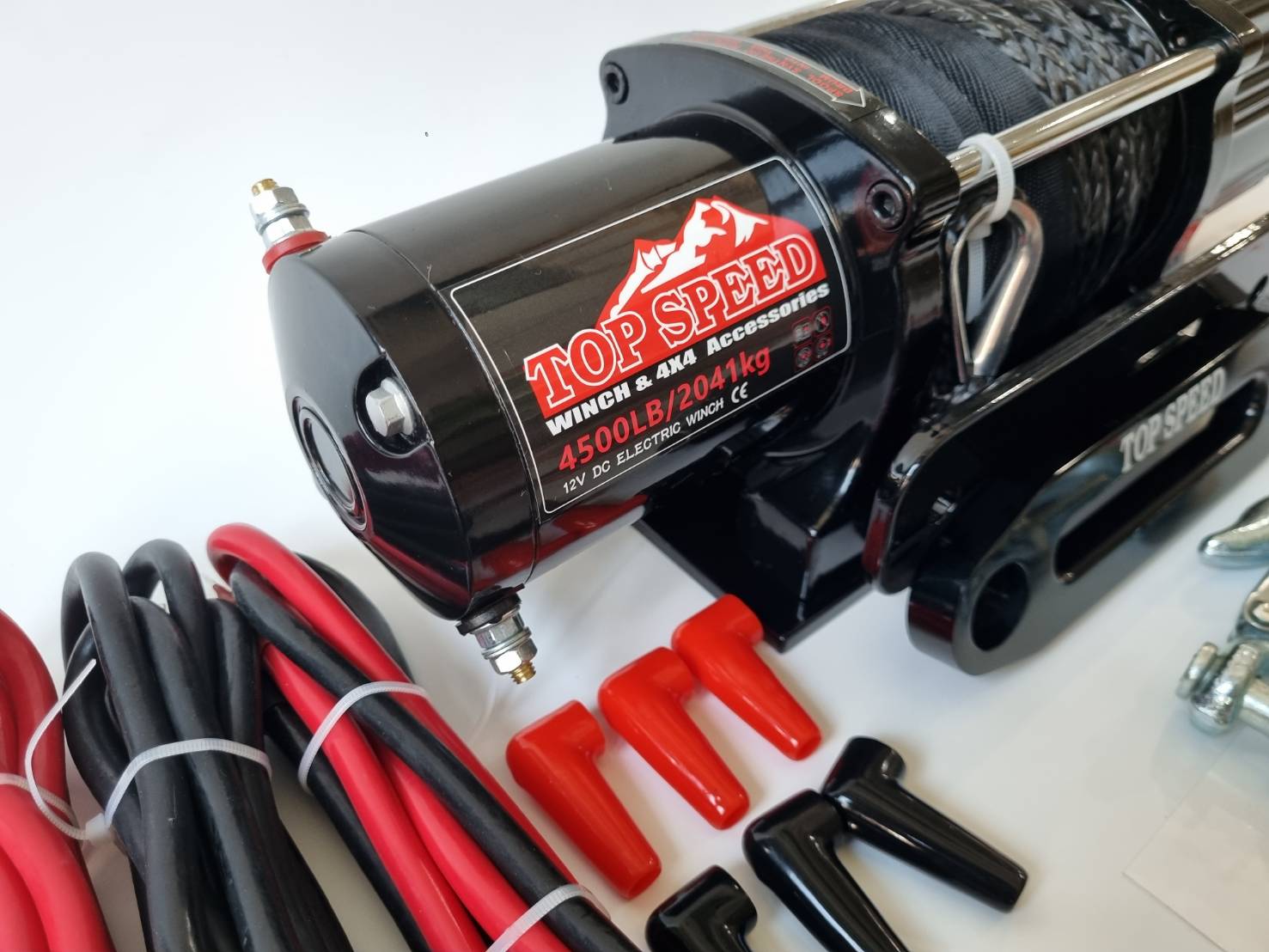

Top Speed Electric Winch 4500lb (2045 kg) Synthetic Rope 12V for ATV, UTV
รอกไฟฟ้าขนาด 4500Lb (2045Kg) แบบเชือก 12V
G.W.: 12.25 Kgs.
Cartons Size: 29 x 42 x 19 cms.
SPECIFICATION
Working Load: 4500lbs (2045Kg) Single line
Motor: Permanent magnet DC12V motor with 1.5p output
Gear reduction ratio: 136:1
Gear train: 3-Stage Planetary
Clutch (free spooling): cam activated
Brake: Mechanical Break
Rope: Φ6.5mm x 15m
Drum size (DiaxL): Φ45mm x 80mm
Overall dimensions (LXWXH): 415mm x 118mm x 118mm)
Weight (Rope Winch): G.W. 12.25 kg
Packing Size:42 x 29 x 19 cms
สั่งซื้อ / BUY
