Download Catalogue6000lb (2721kg) 12V Synthetic Rope (ดูรายละเอียด)
Top Speed Electric Winch
6000lb (2727kg) 12V Synthetic Rope
รอกไฟฟ้าขนาด 6000lb (2727Kg) 12V แบบเชือก

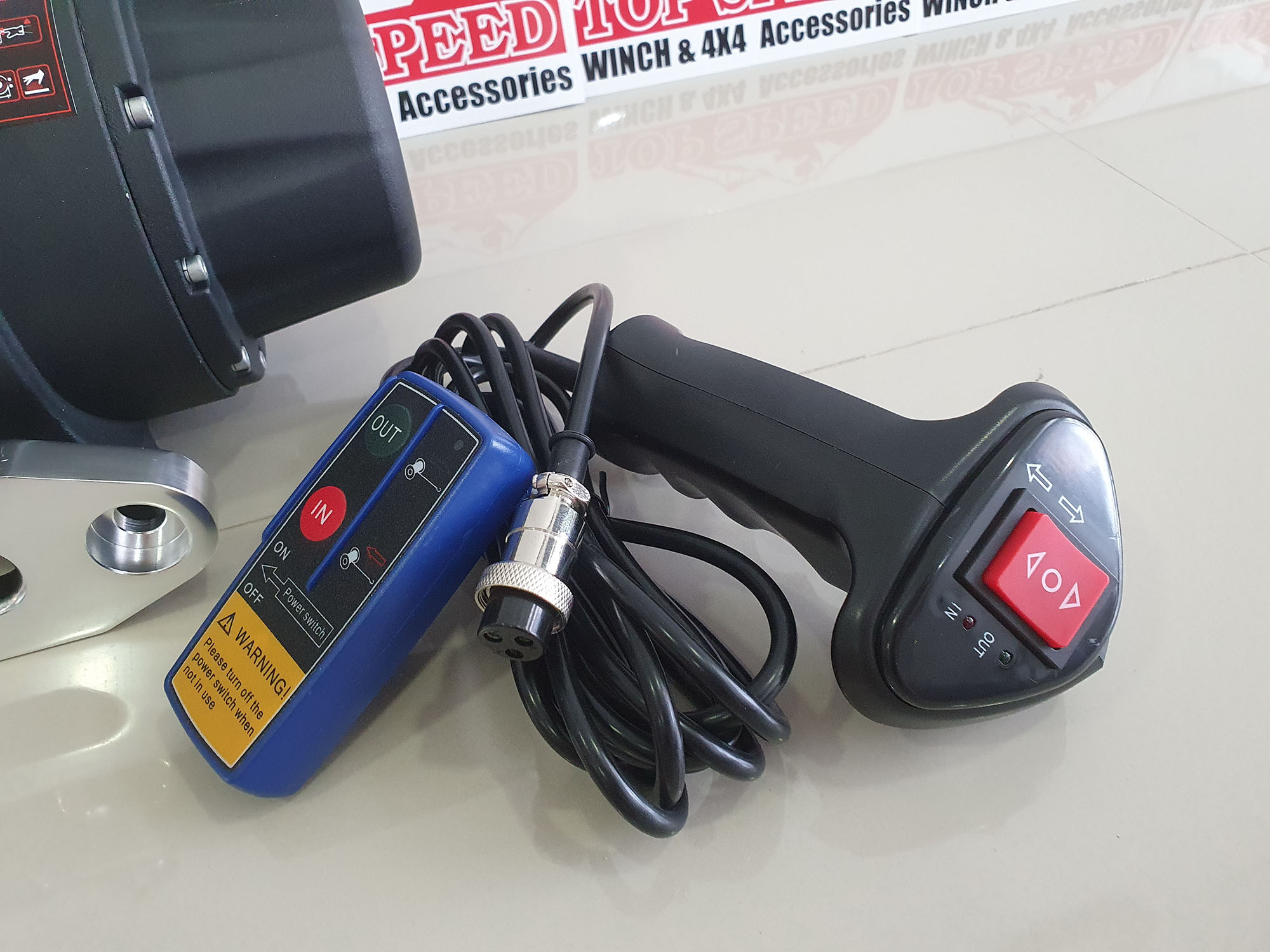

มีรีโมทสาย / ไร้สายอยู่ในชุดเรียบร้อยแล้ว
Gross Weight: 20.85 Kgs.
Carton Size: 61 x 35 x 26 cms
Specification
Rated line pull: 6000lb (2727kg) Single line

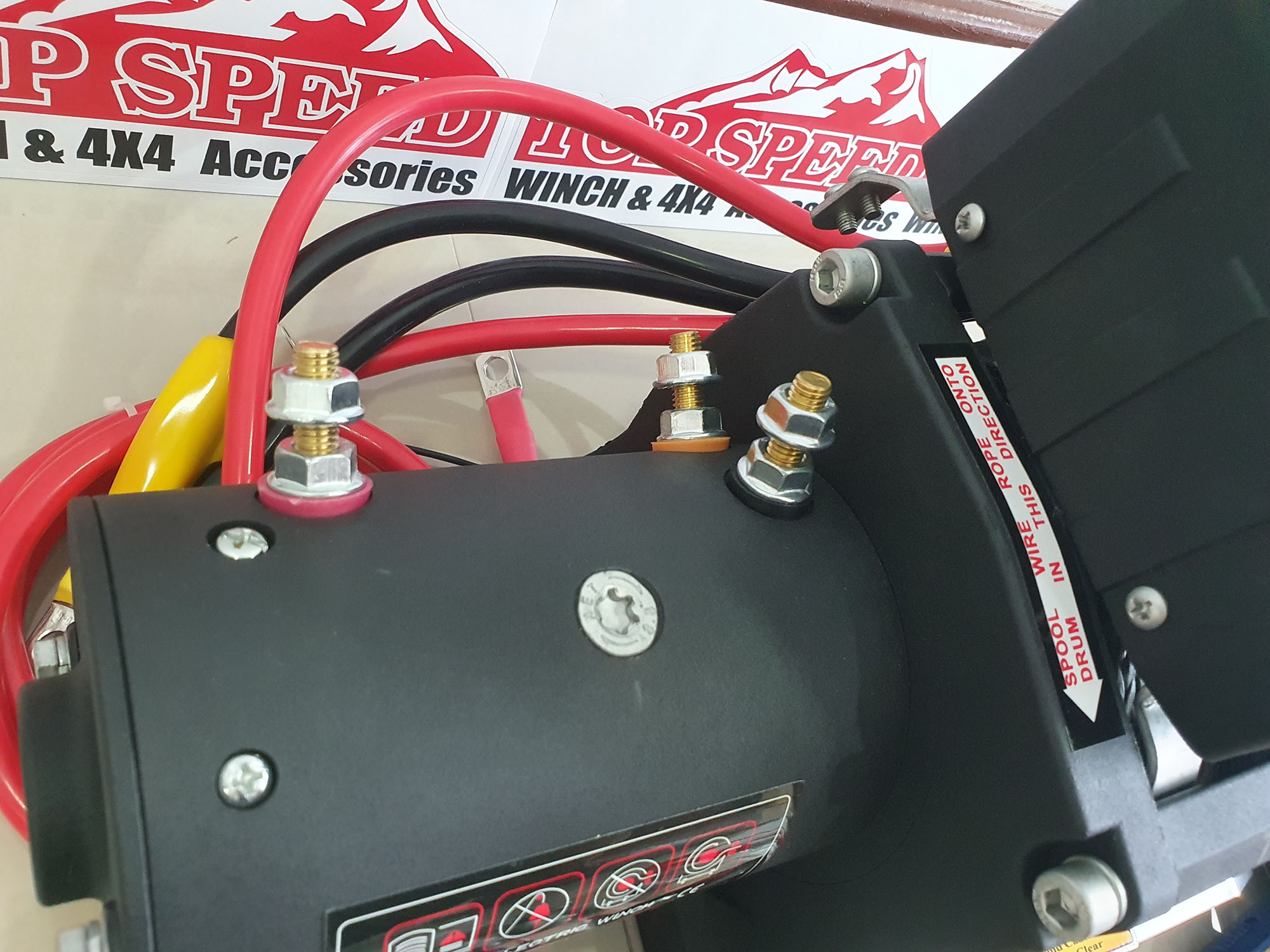

Motor: 4.4hp/3.3kw 12V, Series Wound
Control: Remote Switch, 12ft (3.7m) lead
Gear train: 3 Stage Planetary
Gear reduction ratio: 216:1
Clutch: Up and down
Braking Action: Two-way, Automatic In-The-Drum
Drum Dimensions: Dia2.51" x 5.27" (Dia64mm x 134mm)
Synthetic Rope (Dia X L): Dia7.2mm x 15m
Fairlead: Hawse Fairlead
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Black powser coat
Overall dimensions: 17.0" x 6.4" x 6.7" (432 x 162 x 170mm)
Duty Cycle: Intermittently
Mounting Bolt Pattern: 164mm x 114.3mm
