Download Catalogue6000lb (2727kg) 12V steel rope (ดูรายละเอียด)
Top Speed Electric Winch
6000lb (2727kg) 12V with cable
รอกไฟฟ้าขนาด 6000lb (2727Kg) 12V แบบสลิง

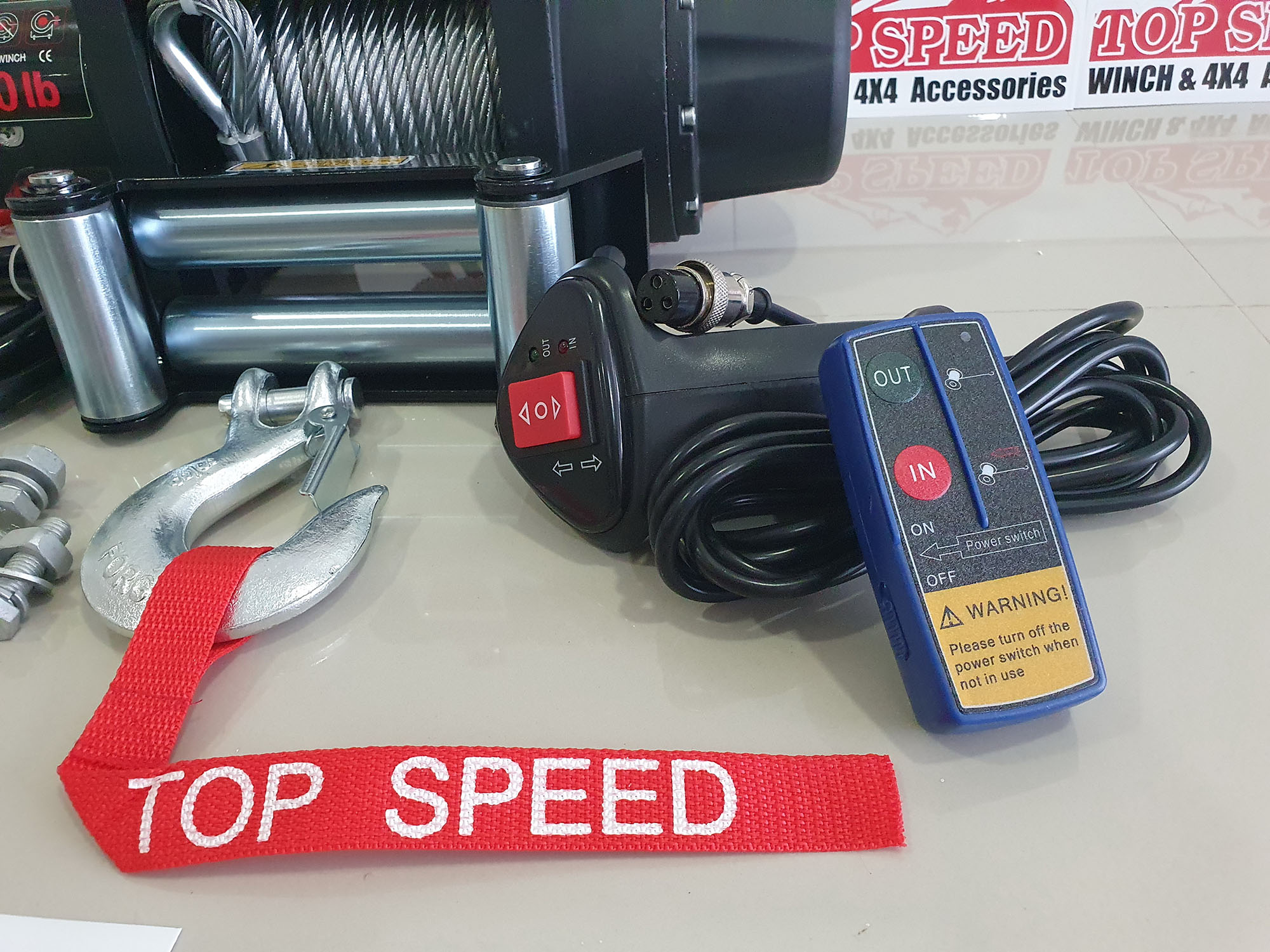

รีโมทสาย / รีโมทไร้สายมีให้อยู่ในชุดเรียบร้อย
Gross Weight: 25.40 kgs.
Carton size: 61 x 35 x 26 cms.
Specification:
Rated line pull: 6000lb (2727kg) single line
Motor: 4.4hp/3.3kw 12V, Series Wound
Control: Remote switch, 12ft93.7m) lead
Gear train: 3 Stage Planetary
Gear reduction ratio: 216:1
Clutch: up and down
Braking Action: Two-way} Automatic In-The-Drum
Drum Dimensions: Dia 2.51" x 5.27" (Dia64mm x 134mm)
Cable (Dia X L): Dia 7.2mm x 15m
Fairlead: 4-Way Roller Fairlead
Battery: Recommended: 650CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Black powder coat
Overall dimensions: 17.0" x 6.4" x 6.7" (432 x 162 x 170mm)
Duty Cycle: Intermittently
Mounting Bolt Pattern: 164mm x 114.3mm
สั่งซื้อ / BUY
